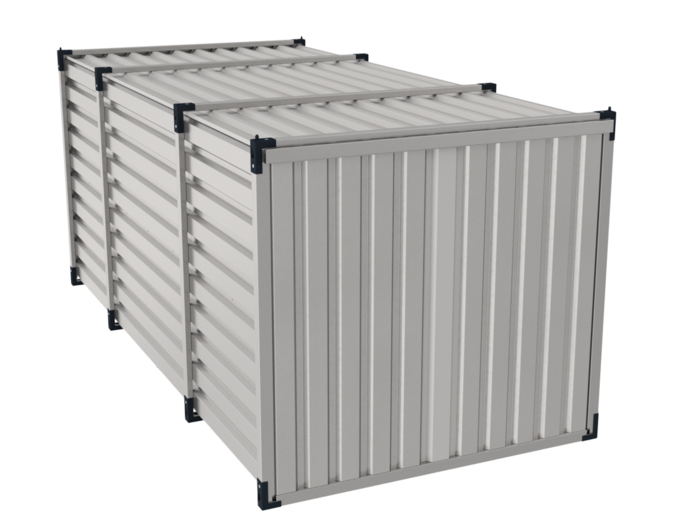

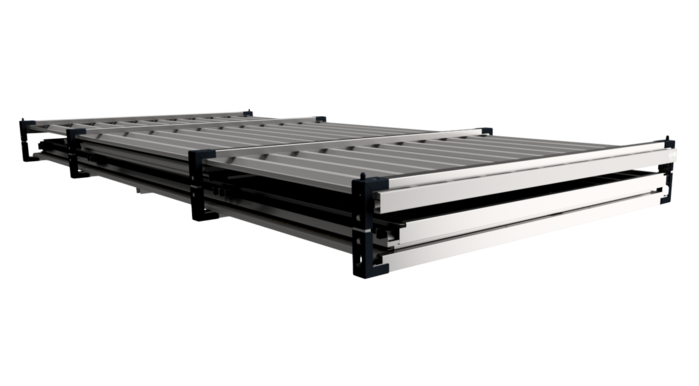

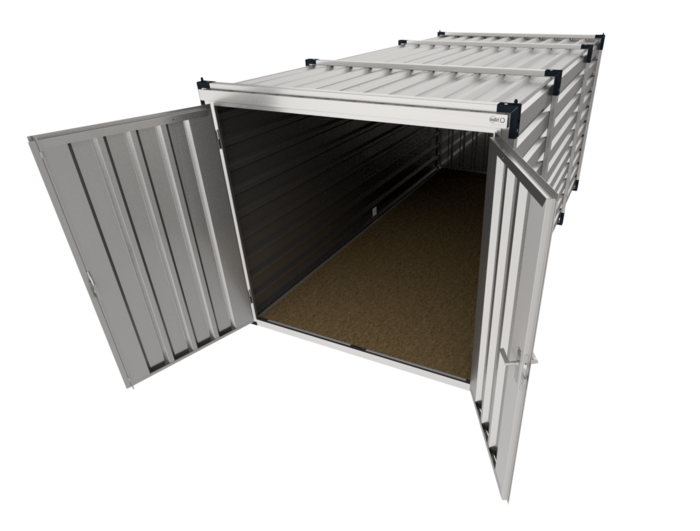

Kovobel 5m MAX Flat Pack Storage Container — Extra Wide 2.4m Body

The Kovobel 5m MAX flat pack storage container applies the extra-wide 2.4m body of the MAX range to the 5m footprint, delivering 4.84m of internal length and 2.22m of internal width in a single galvanised steel storage unit. For operations where the standard 5m container provides the right length but feels too narrow for machinery, wide equipment or two-sided shelving runs, the MAX resolves that constraint without changing the site footprint.

Key Specifications

• External dimensions: 5.00m L × 2.40m W × 2.20m H
• Internal dimensions: 4.84m L × 2.22m W × 2.02m H
• Floor: 25mm OSB (Oriented Strand Board) — 500kg/m² load rating
• Door type: Double-leaf doors with lock — end position
• Crane lift capacity: 1,500kg (when loaded)
• Forklift capacity: 3,000kg (when loaded)

Extra Width for High-Volume Applications

The 200mm of additional width over the standard 2.2m range is most valuable in high-volume applications where the full internal length is in active use — wide machinery needs comfortable clearance, shelving runs require a usable central aisle, and palletised goods benefit from manoeuvring space. The 25mm OSB floor provides an industry-standard 500kg/m² rated surface throughout the 4.84m length.

The proven Kovobel steel system — 0.75mm hot-dipped galvanised panels, external reinforcing bars and the corner bracket system — ensures the MAX is as structurally rigid and stackable as the standard range.

Anti-Condensation Ventilation

The natural ventilation roof design prevents condensation, protecting stored goods from moisture damage without additional treatment or accessories.

Applications and Usage

• Industrial and commercial storage — wide-body unit for component, stock and equipment management
• Agricultural premises — larger machinery access and wide-format equipment storage
• Construction sites — pallet storage, materials management and plant security with room to manoeuvre
• Self-storage facilities — premium wide-bay offering at maximum 5m length
• Workshop fit-out — shelving on both walls with a full-width central working area

Available from UK stock. View the full 5m container range or compare with the standard 5m wooden floor model.
